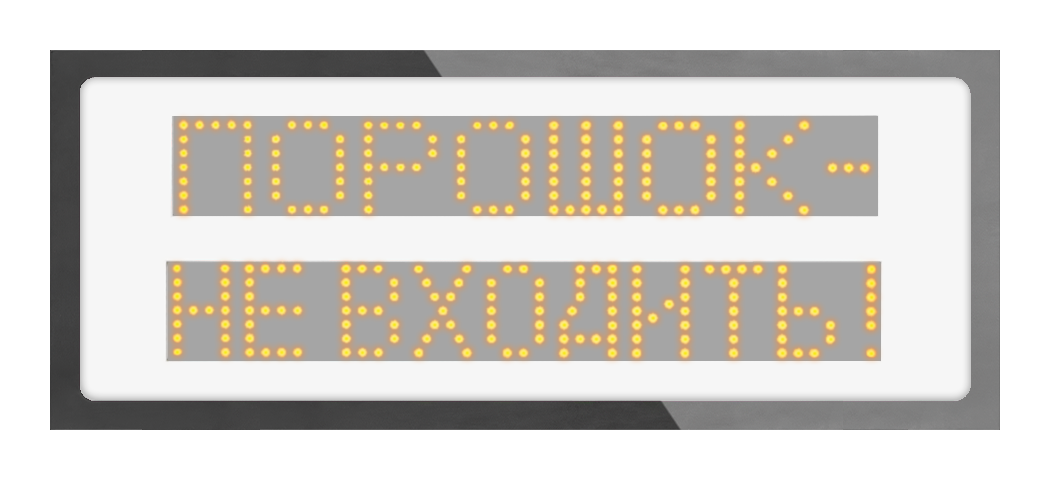

The body of the panel is made from stainless steel and galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will).
Signal colors, form and sizes of the panels are corresponded to GOST 12.4.026-2015.
Any text or pictographic image can be used.
-
Peculiarities:

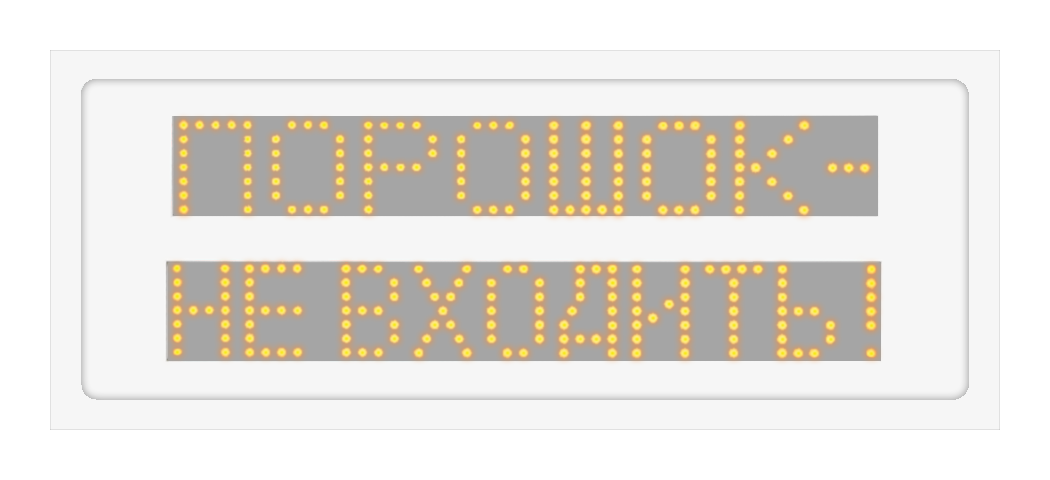

- Provide contrast visibility of signs in flashing conditions up to 10000 lux (sunny day)
- Non-visible in a switch-off mode
- IP66 protective cover
- LED screen
- Temperature range from –40°C to +55°C
- For outside installation a cap should be used
- Any pictograms in any language can be placed
- Clearly inform about operation mode of a panel
- There are fireproof and low-temperature-resistance models
-
Protective cover – IP44
Weight - 1,5 kg
-
Technical characteristics:
Electrical supply – from an AC power supply with U =24V
Operability under voltage change – from 18V to 30V (U max)
Useful current – with the length less than 8 symbols - not more than 100 mA
Sizes, mm:
2х8 - 350х150х40
Connection diagram
Designation | 2х8 |
Dimensions | 350х150х40 mm |
Power supply: current, no more | not more than 100 mA |
Power supply: voltage | 24V |
Sheath protection degree | IP 44, IP 66 |
Temperature regime | from –40 to + 55°С |
Weight | 1,5 kg |
