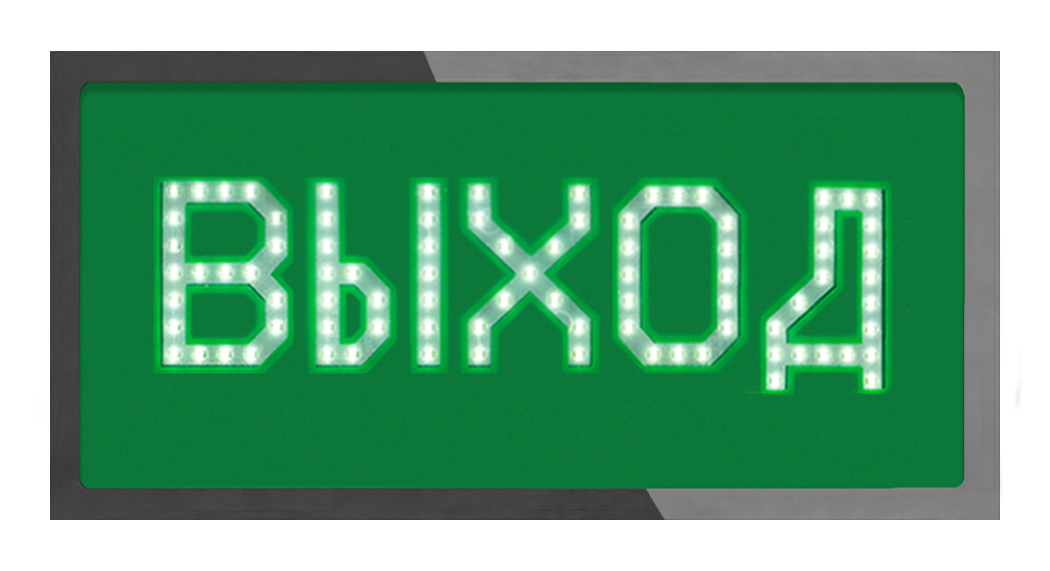

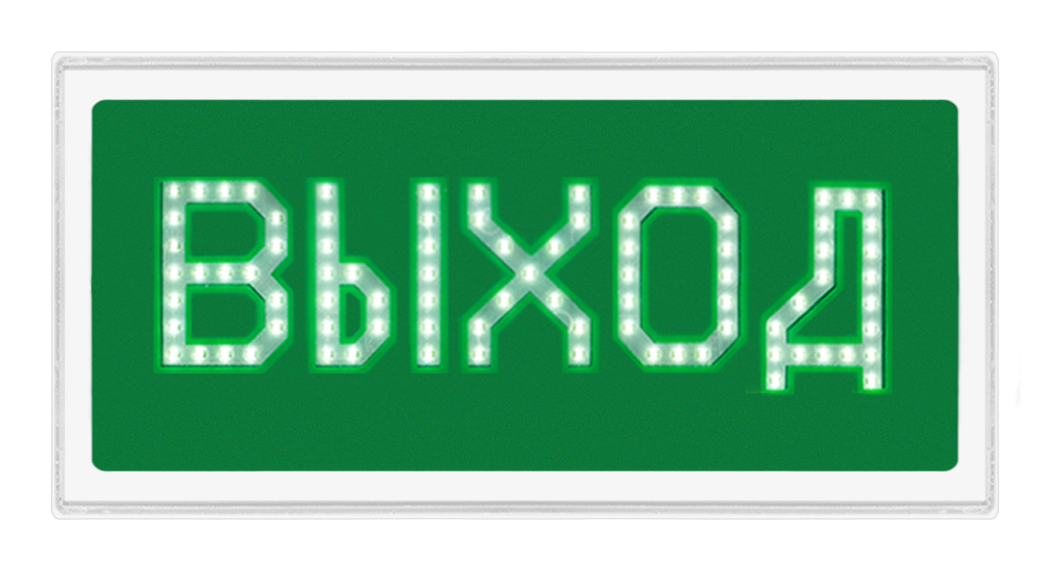

The body of the panel is made from galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will) and from stainless steel.
Signal colors, form and sizes of the panels are corresponded to GOST 12.4.026-2015.
Any text or pictographic image can be used.
-
Peculiarities:
- Provide contrast visibility of signs in flashing conditions up to 10000 lux (sunny day)
- Non-visible in a switch-off mode
- IP66 protective cover
- LED screen
- Temperature range from –40°C to +55°C
- For outside installation a cap should be used
- Any pictograms in any language can be placed
- Clearly inform about operation mode of a panel
- There are fireproof and low-temperature-resistance models
-
Protective cover – IP44 and IP66
Weight - 1,5 kg
-
Technical characteristics:
Electrical supply – from an AC power supply with U =24V
Operability under voltage change – from 18V to 30V (U max)
Useful current – with the length less than 8 symbols - not more than 100 mA
Sizes, mm:
2х5 - 300х150х40

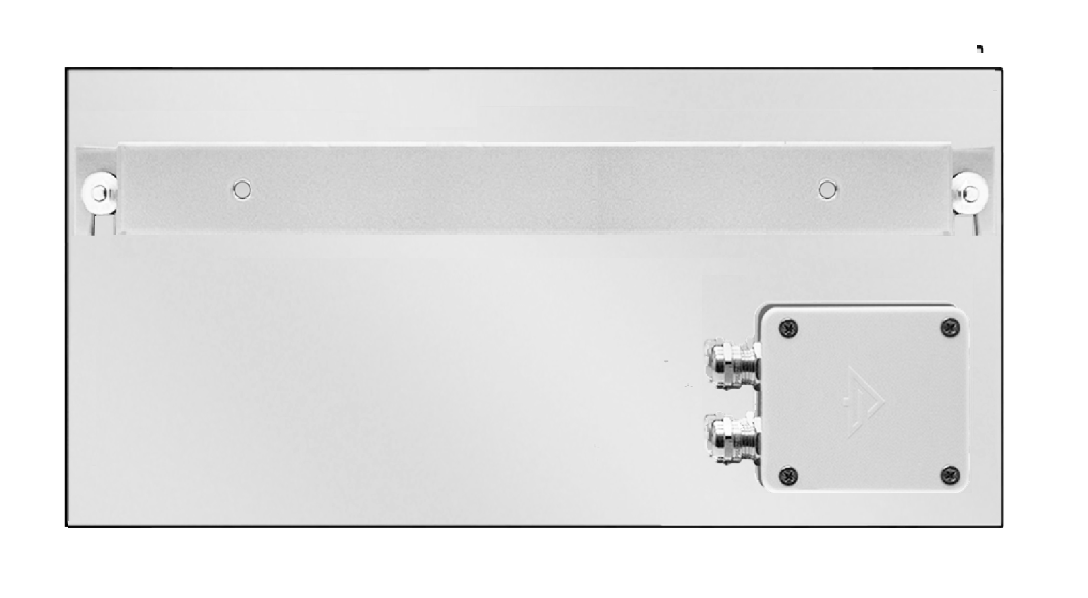

Connection diagram
Designation | 2х5 |
Dimensions | 300х150х40 mm |
Power supply: current, no more | 100 mA |
Power supply: voltage | 24V |
Sheath protection degree | IP 44, IP 66 |
Temperature regime | from –40 to + 55°С |
Weight | 1,2 kg |
