Novelty
vendor code 00-00012752
143000.00 rub.
Description

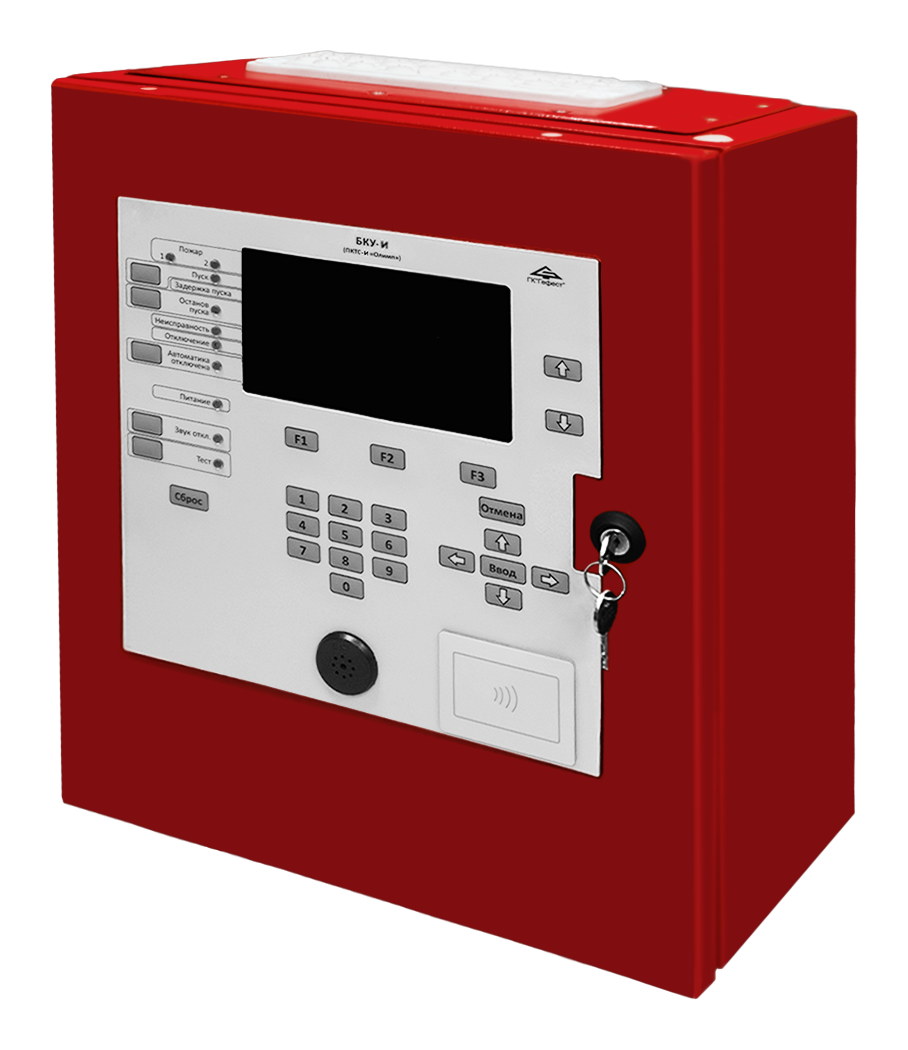

BKU-I is a fire alarm control panel, including the function of the slave. It is a mandatory "head" component of the system.
The BKU-I performs monitoring and control:
- in the "Master" mode - by the slave BKU-I;
- in the "Slave" mode and in the "One in the system" mode - by the controllers of the local KL-I.
Assignment:
- monitoring of the EAS in automatic mode according to a predetermined algorithm;
- activation of any EAS in manual mode;
- monitoring of the fire extinguishing warning and evacuation system of 1-2 types;
- monitoring of engineering, technological equipment and other devices;
- display and logging of address information about events in the system;
- connection of the Olimp-I automated workstation.
Technical specification
|
Parameter |
Value |
|
Power supply voltage: nominal allowed |
~230 V from 195 to 253 V |
|
Maximum number of connectable local controllers (KLs) |
8 |
|
Maximum number of connectable addressable devices |
2000 |
| RS-485 line length | 1 km* |
| Number of extinguishing zones (directions) | 1000 |
| Number of baffle zones | 99 |
|
Output to monitoring station |
4 |
|
Enclosure degree of protection |
IP55 |
| Overall dimensions, not more than | 400х400х200 mm |
| Weight, not more than | 14 kg |
* - Increase of the line length is possible under the condition of using IKZ-485

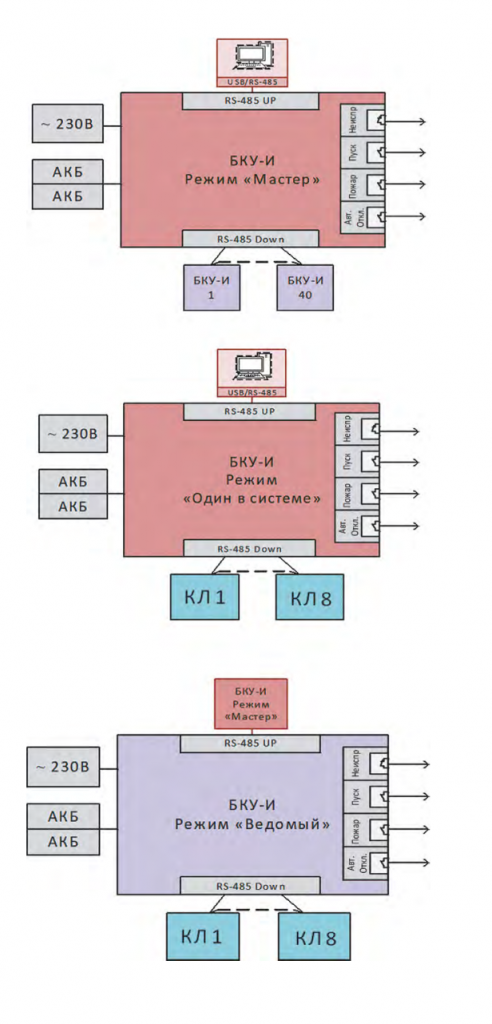

Connection diagram
Characteristics
| Bestseller | Novelty |
| Consumption current | 0,114 А |
| Exit to the monitoring station | 4 |
| Maximum number of connected addressable devices | 2000 |
| Maximum number of connected local controllers (CL) | 8 |
| Number of extinguishing zones (directions) | 1000 |
| Overall dimensions, mm | 420х400х200 mm |
| Power supply: current, no more | 0,114 А |
| Power supply: voltage | ~230 В (50 hz) |
| RS-485 line length | 1 km (each section) |
| Sheath protection degree | IP55 |
| Temperature regime | from - 5 to 55 °C |
| Weight | 14 kg |
