635.00 rub.
Description
Sprinklers with monitoring of activation.

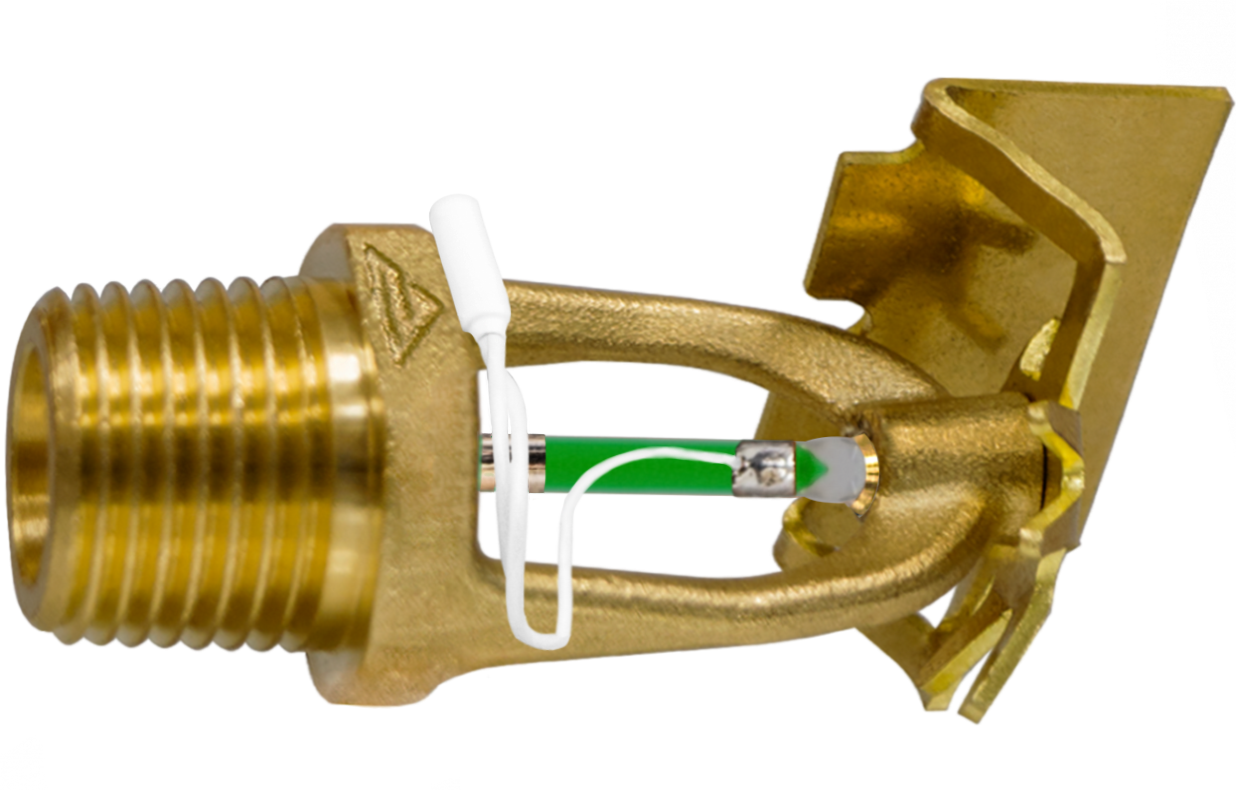

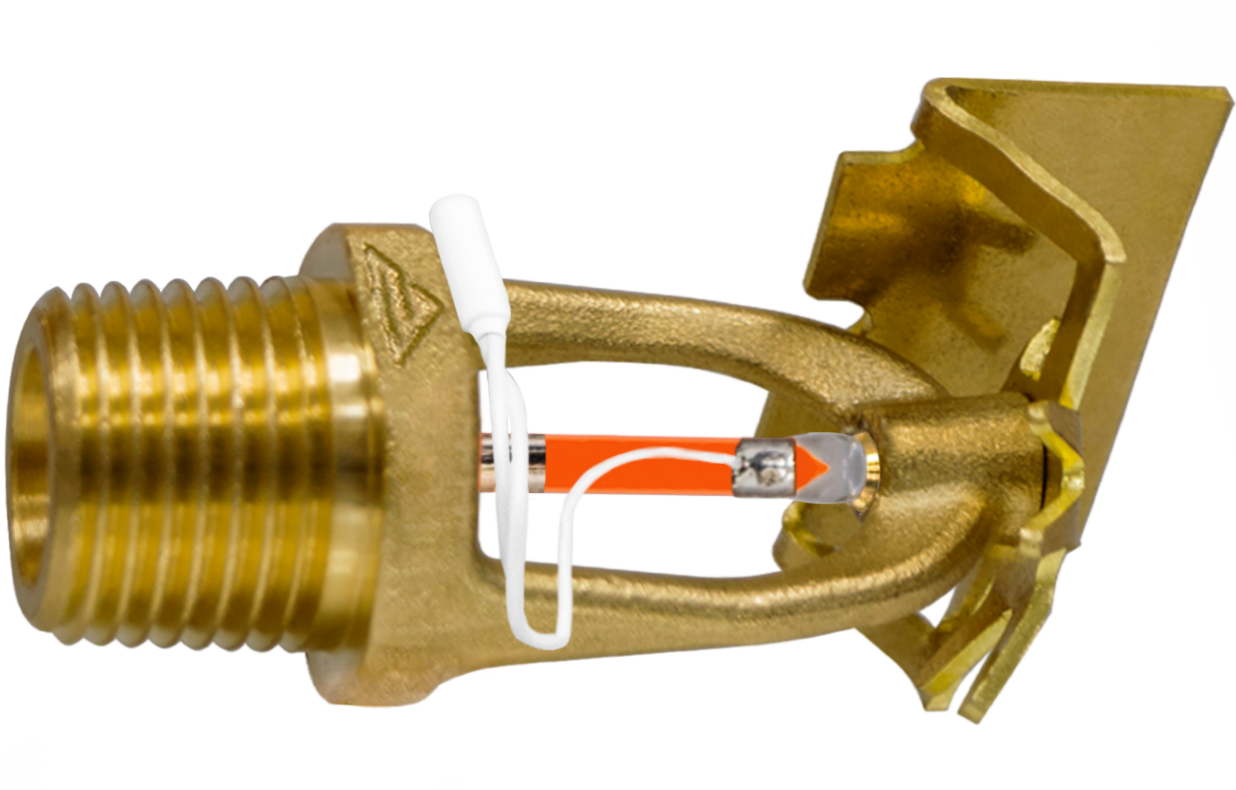

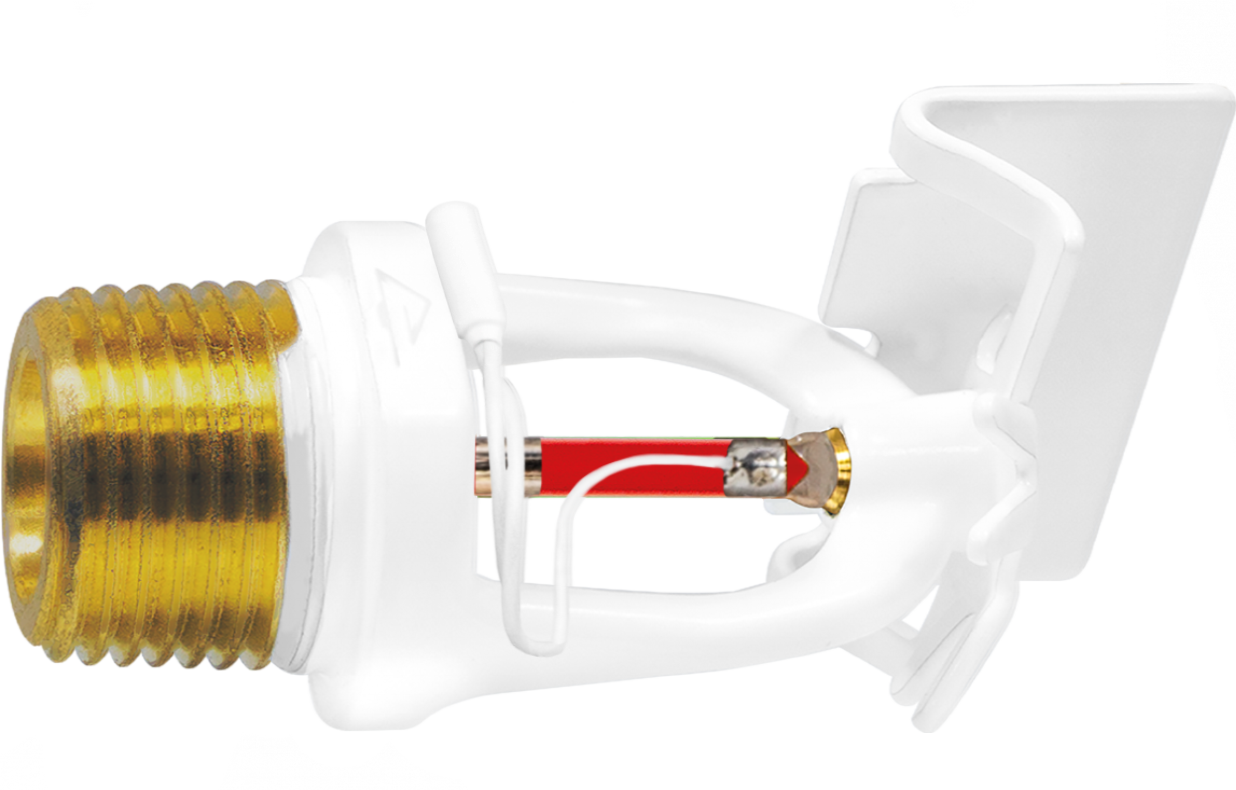

- Pendant sprinkler with monitoring of activation for horizontal montage
- Capacity factor - 0.42 (80)
- Protected area - not less than 12 sq.m.
- Actuation temperature - 57° С, 68° С , 93° С.
- Flask of fast response - 3mm.
- Connecting thread - 1/2 inches
- Color - without cover (bronze), with cover (nickel, white)
Diagram of water irrigation intensity for universal horizontal sprinklers with capacity factor K=0.42/80/5.5
Characteristics
| Atomizer weight | 0,064 kg |
| Connecting thread | ½ inch |
| Dimensions | 68х30 mm |
| Installation orientation | Horizontal |
| K-factor | 5,5 (80) |
| Outlet diameter | 11,8 mm |
| Performance factor | 0,42 |
| Sprinkler flask diameter | 3 mm |
| Sprinkler response temperature | 57° С, 68° С , 93°С |
Docs
Certificate TR EAEU
945.6 Кб
