Modification designation |

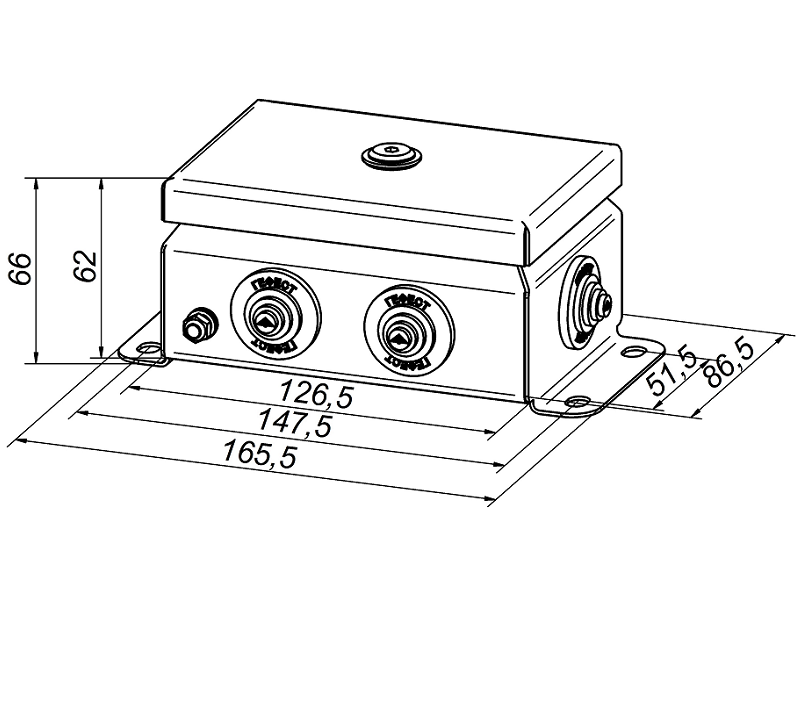

Size* mm |
Q-ty of glands, up to |
КМ-IP55-0812 Stainless steel |
86x126x62 |
6 |
* without fitting elements and cable glands
Description

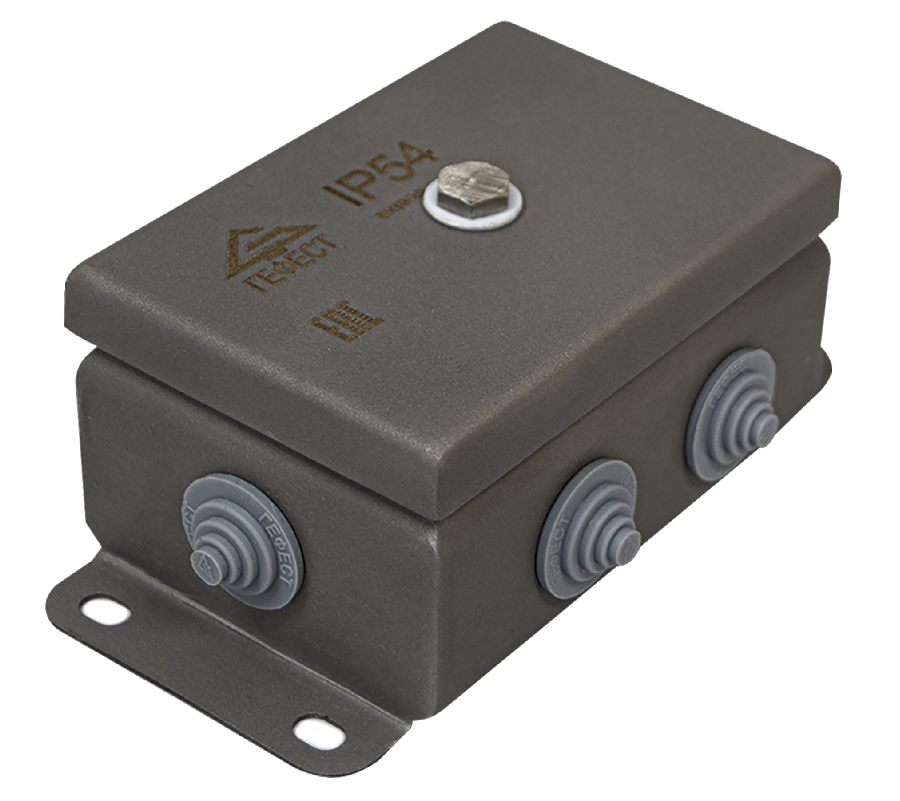

Installation boxes KM IP55 are designed to connect and branch wiring for various purposes. They are used for outdoor and indoor installation under a shelter.
Housing is made of stainless steel sheet AISI 304 with thickness of 1.2 mm.
Design
Junction box body has a rectangular or square shape. The lid is hermetically sealed to the housing by the connection with screws and sealing silicone gasket.
Inside the body of the box there is a steel galvanized Ω-type DIN rail of 35 mm width and 7,5 mm height needed for fitting of terminal blocks. Terminal blocks are not included into a supply package. On the cover and on the housing there are grounding clamps "PE". The side walls are equipped with membrane-type sealing bushings, providing the degree of protection against penetration not lower than IP55.
Feature
Electrical junction boxes are made of stainless steel AISI 304, which has chemical and corrosion resistance, high strength. All external mounting elements are made of stainless steel.
Certification
The boxes are certified for compliance with the requirements of technical regulations: ТР ТС 004/2011 "About safety of low-voltage equipment".
Main technical specifications
Degree of protection: IP55.
Climatic modification as per GOST 15150: EC 2, EC 5, MU 2, MU 5
Temperature range: from -40ºС to +100ºС.
Connected cable diameter: 4-18 mm.
Designation | КМ-IP55 0812 Stainless steel |
Dimensions, mm | 86x126x62 |
Max. section of the clamped wires, sq. mm | 4-18 |
Number of inputs, up to | 6 |
