Novelty
vendor code УТ000032489
440.00 rub.
Description
| Designation | Sizes, mm |
Quantity of inputs, up to |
Quantity of contacts |
Max cross-section of wires in terminals, sq. mm |

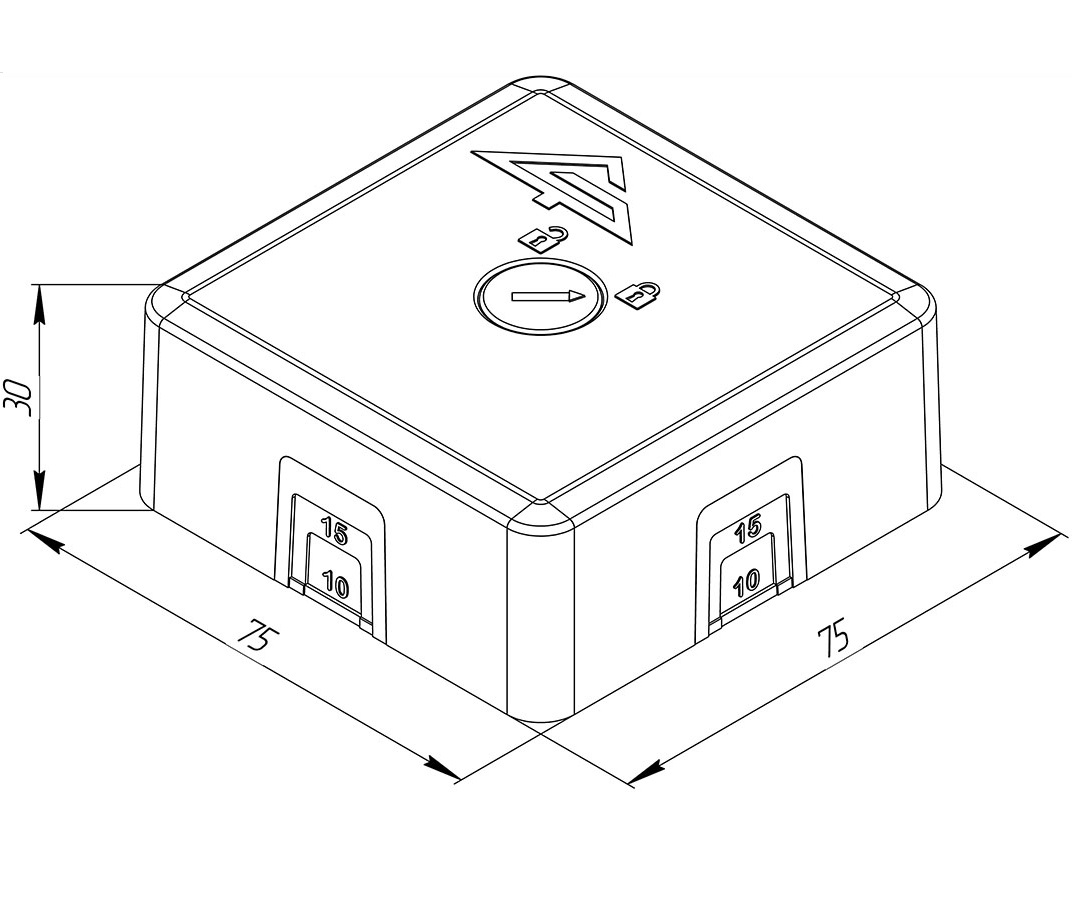

| KM-O (8k)-IP41-s | 75х75х30 | 4 | 8 | 6,0 |
Main technical specifications
Degree of protection: IP41.
Fire resistance as a part of the cable line: 60-90* minutes.
Climatic modification as per GOST 15150: EC 4
Operating temperature range from -40 ° C to +80 ° C
Nominal connecting capacity of terminals: 3.0, 6.0 мм2.
Rated voltage 450 V
Characteristics
| Bestseller | Novelty |
| Designation | КМ-О (4к)-IP41-s |
| Dimensions, mm | 75х75х30 |
| Max. section of the clamped wires, sq. mm | 6.0 |
| Number of contacts | 6 |
| Number of inputs, up to | 4 |
