Modification designation |
Sizes*, mm |
Q-ty of inputs, up to |
Q-ty of contacts, up to |
КМ-О IP66 0808 | 86х86х62 | 4 | 8 |

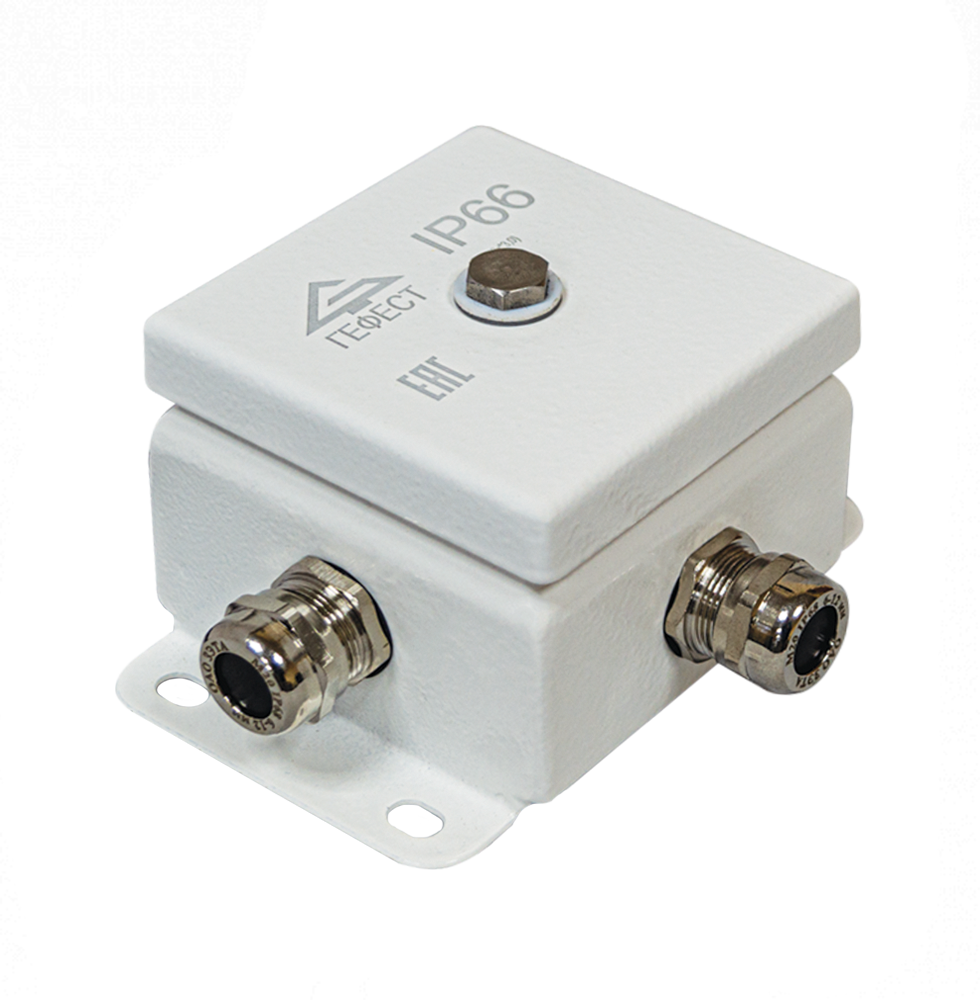

Fireproof junction boxes КМ-О IP66 are designed for connection and branching of fire-resistant cable lines. They are used for outdoor and indoor installation under a shelter.
The body of junction boxes is made of 1,2mm thick galvanized steel and is covered by polymeric paint.

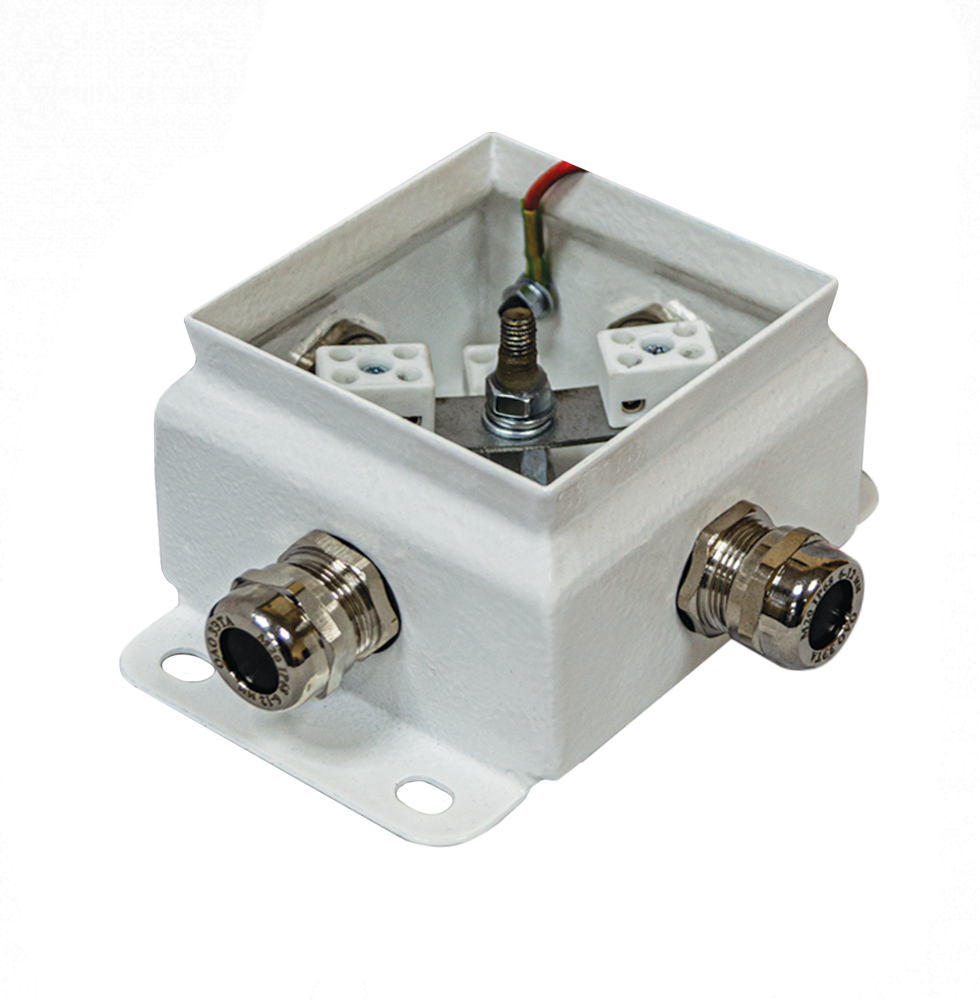

Body of fireproof junction box has a rectangular or square shape. The lid is hermetically sealed to the housing by the connection with screws and sealing silicone gasket. Inside the enclosure there are ceramic terminal blocks.
The screw ends on the terminal block have a rounded shape that allows the wires to be secured without damage. Ceramic terminal blocks provide a secure connection in fire conditions.
On the cover and on the housing there are grounding clamps "PE". In side walls there are stainless steel cable glands that provide protection degree at least IP66.
All external fixing elements are made of stainless steel.
Boxes are certified to comply with technical regulations: TR TS 004/2011 "On Safety of Low Voltage Equipment".
Main technical specifications
Shell protection degree: IP66
Fire resistance as part of a cable line: 60 minutes.
Climatic modification as per GOST 15150: MC1.
Operating temperature range from -40 ° C to +80 ° C
Connected cable diameter: 4-18 mm.
Nominal connecting capacity of terminals: 3.0, 6.0, 10.0 mm2.
Rated voltage: 450 V
Designation | КМ-О IP66 0808 |

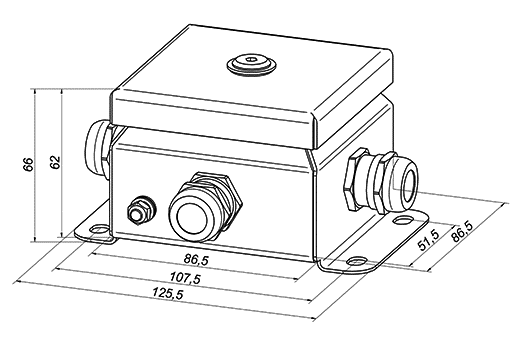

Dimensions | 86х86х62 mm |
Number of contacts | 8 |
Number of inputs, up to | 4 |
Power supply: voltage | 450 V |
Sheath protection degree | IP66 |
Temperature regime | from - 40ºС tо +130ºС |
Weight | 0,7 kg |
