Designation |
Size, mm |
Quantity of inputs, up to |
Quantity of contacts, up to |
КМ-О (4к*6.0)-IP66-120x120 |
125х125х62 |
4 | 4 |

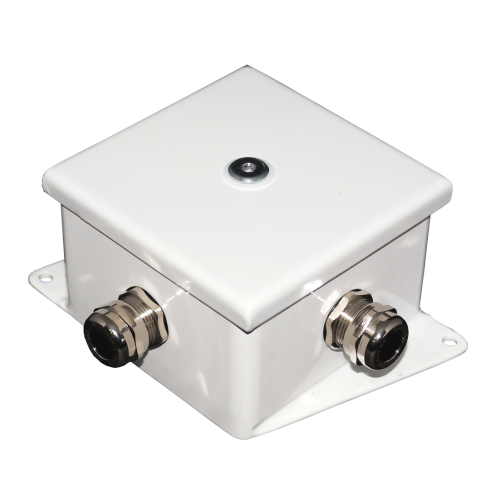

The body of junction boxes is made of 3mm thick galvanized steel and is covered by polymeric paint. It has double protection against corrosion because of galvanic treating and polymeric cover. Elements of connections and fittings also have galvanic anti-corrosion cover. Density of contact between the cap and the body is implemented via a silicon pad.

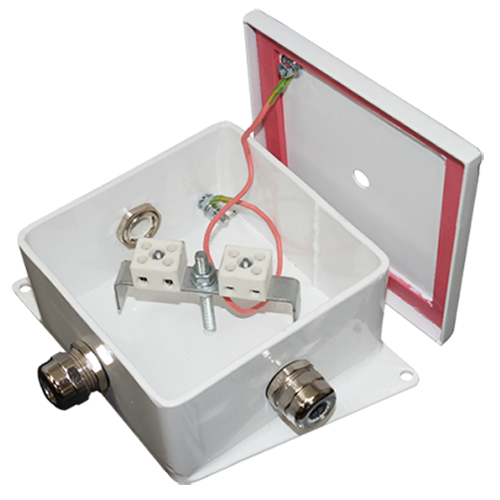

There are ceramic terminal blocks inside the body, which provide a tap screw connection and a grounding grip. The cap of the box is connected with “RE” grip via grounding wire inside the body.
There are special metal glands installed in side walls for cable with 6-12 mm outer diameter. Cable glands are equipped with a intumescent sleeves which frequently grow in size under high temperatures creating solid coked cellular material fixing the cable in such position that prevents an availability of a short current.
It is possible to use cables laid in metal hose, corrugated stainless pipe, pipe for water and gas. You can find types of cable glands used for cable connection laid in a metal hose, corrugated stainless pipe, pipe for water and gas below.
Approved for use within cable lines for provision of electrical operability according to GOST R 53316-2009.
Provide workability under standard temperature conditions according to GOST 30247.0-94 during 120 minutes.
Temperature range: from -40ºС to +100ºС.
It is possible to manufacture boxes with temperature range from -60ºС to +130ºС
Maximum cross-sections in terminal blocks mm2: 3,0; 6,0; 10,0
Maximum voltage: 450V
Designation | КМ-О (4к*6.0)-IP66-120x120 |

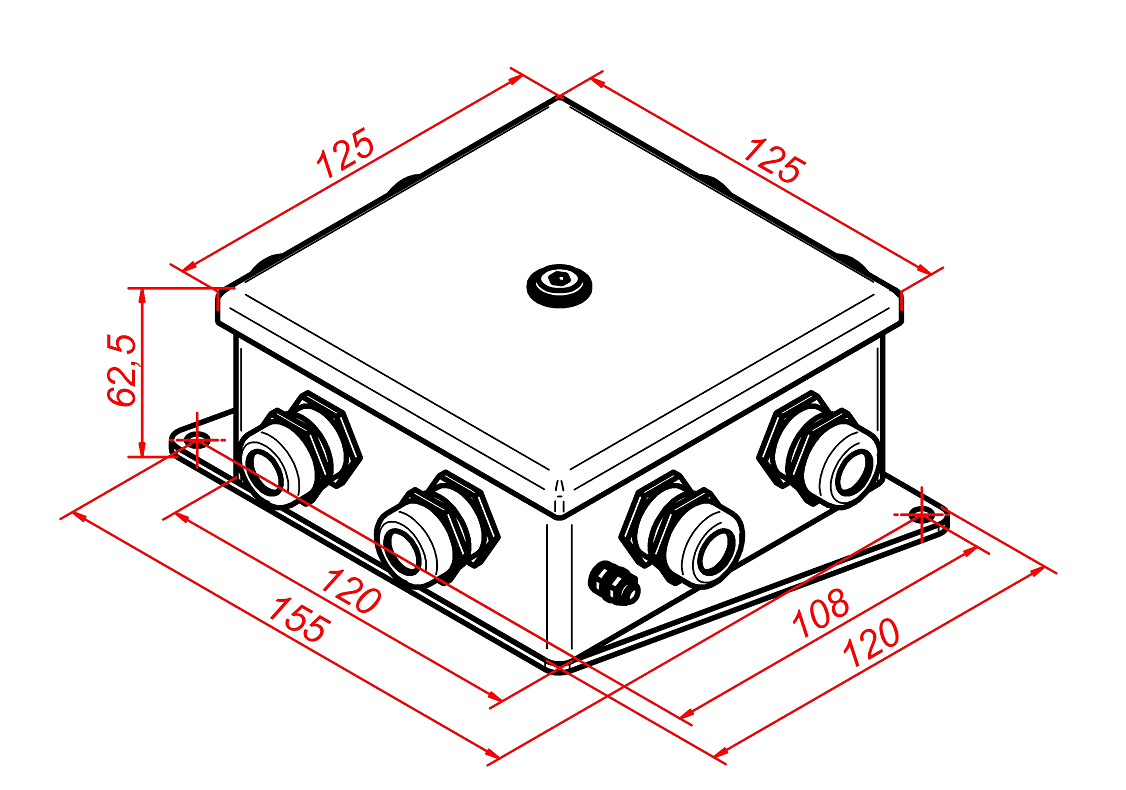

Dimensions | 125х125х62 mm |
Number of contacts | 4 |
Number of inputs, up to | 4 |
Power supply: voltage | 450 V |
Sheath protection degree | IP66 |
Temperature regime | from - 40ºС tо +130ºС |
Weight | 2,6 kg |
