Explosion-and-fire-proof junction boxes correspond to requirements of all necessary Russian regulations.
Boxes are used for installation of electrical alarm and monitoring circuits of fire safety systems and for installation of electric wiring in explosion-hazard environment (except underground mines manufacturing and their ground buildings).

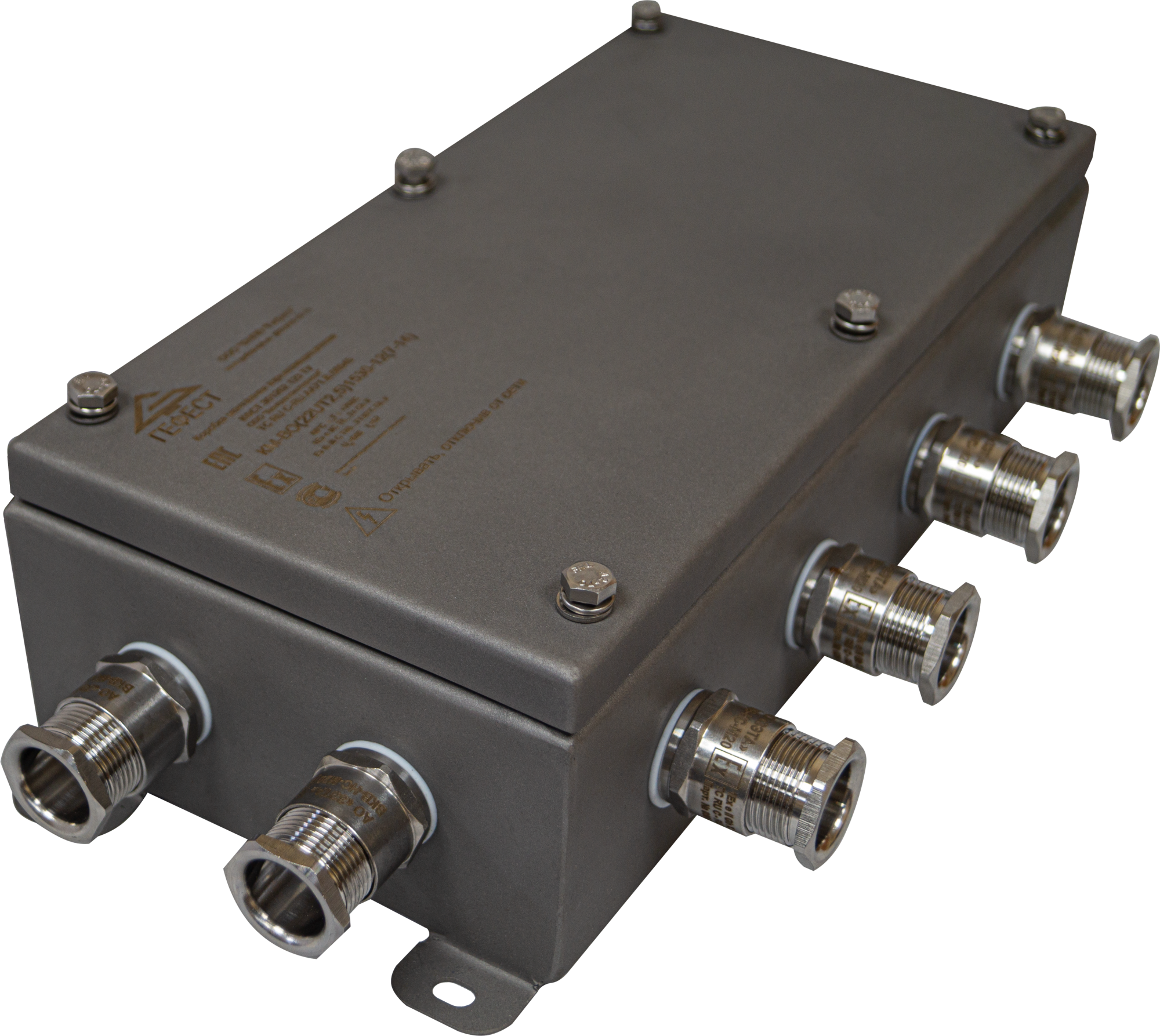

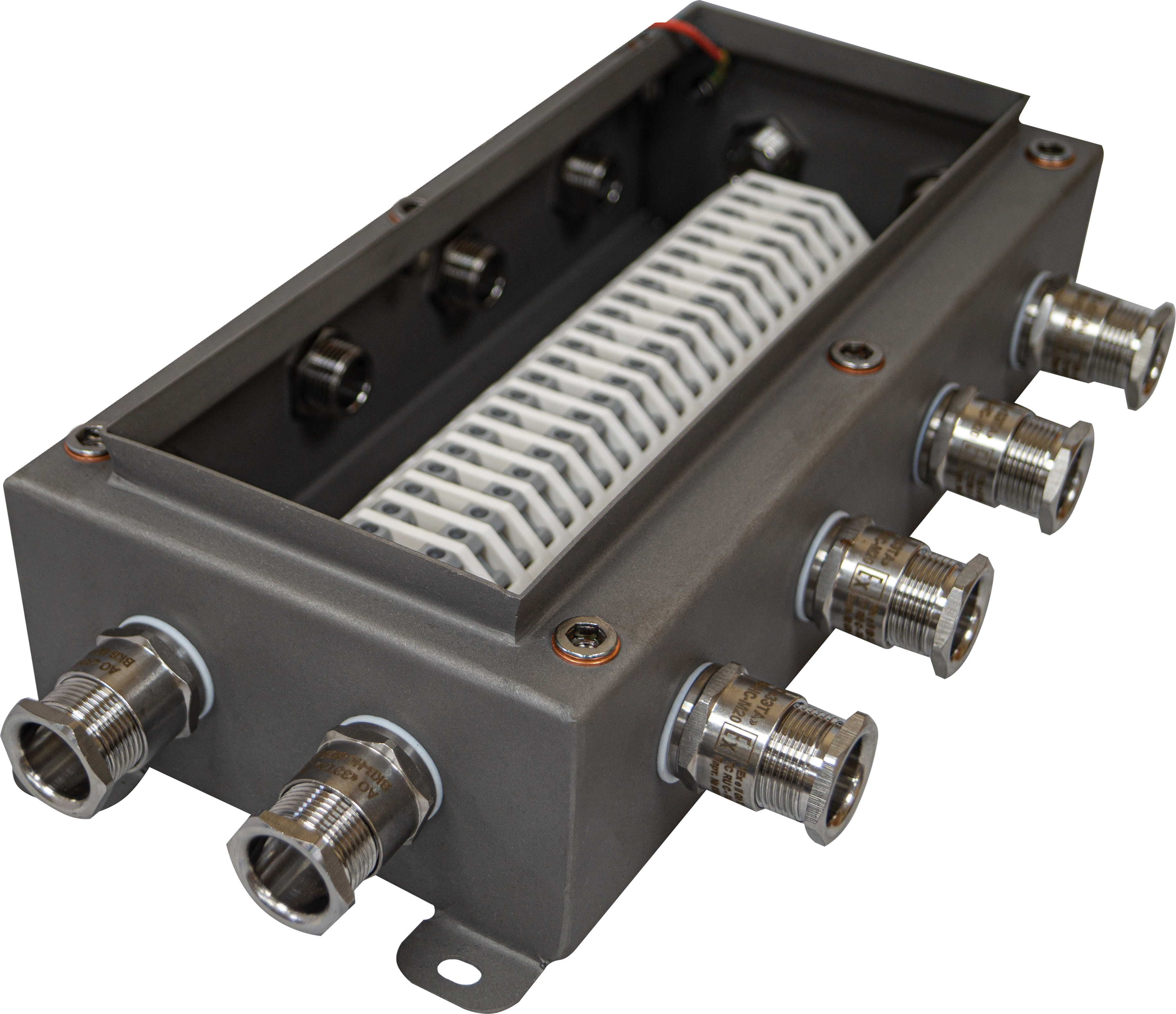

A box consists of a body and a cap. Corrosion protection is provided by using corrosion-proof materials. Fastening is implemented via bolt connection. There is a DIN –rail with terminal blocks inside the box. Grounding of the body is implemented via a grounding clamp.
There are explosion-proof cable glands with external diameter 3-26 mm. Different type of cable implementation can be used: in a metal hose, in a pipe or armored cable.
Main technical specifications
Protection degree: IP66
Climatic modification as per GOST 15150: EC 1.
Operating temperature range from -60 ° C to +70 ° C
Explosion-proof tape marking: 1Ех ib IIС Т6...Т4 Gb X.
Ех tb IIIC Т80°С...Т1300 C Db X.
1Ех e IIС Т6...Т4 Gb X.
Connected cable diameter: 3-9, 7-14, 12-20, 18-26 мм.
Maximum voltage for circuits «i»: 550 V.
Maximum voltage for circuits «е»: 600 V.
|

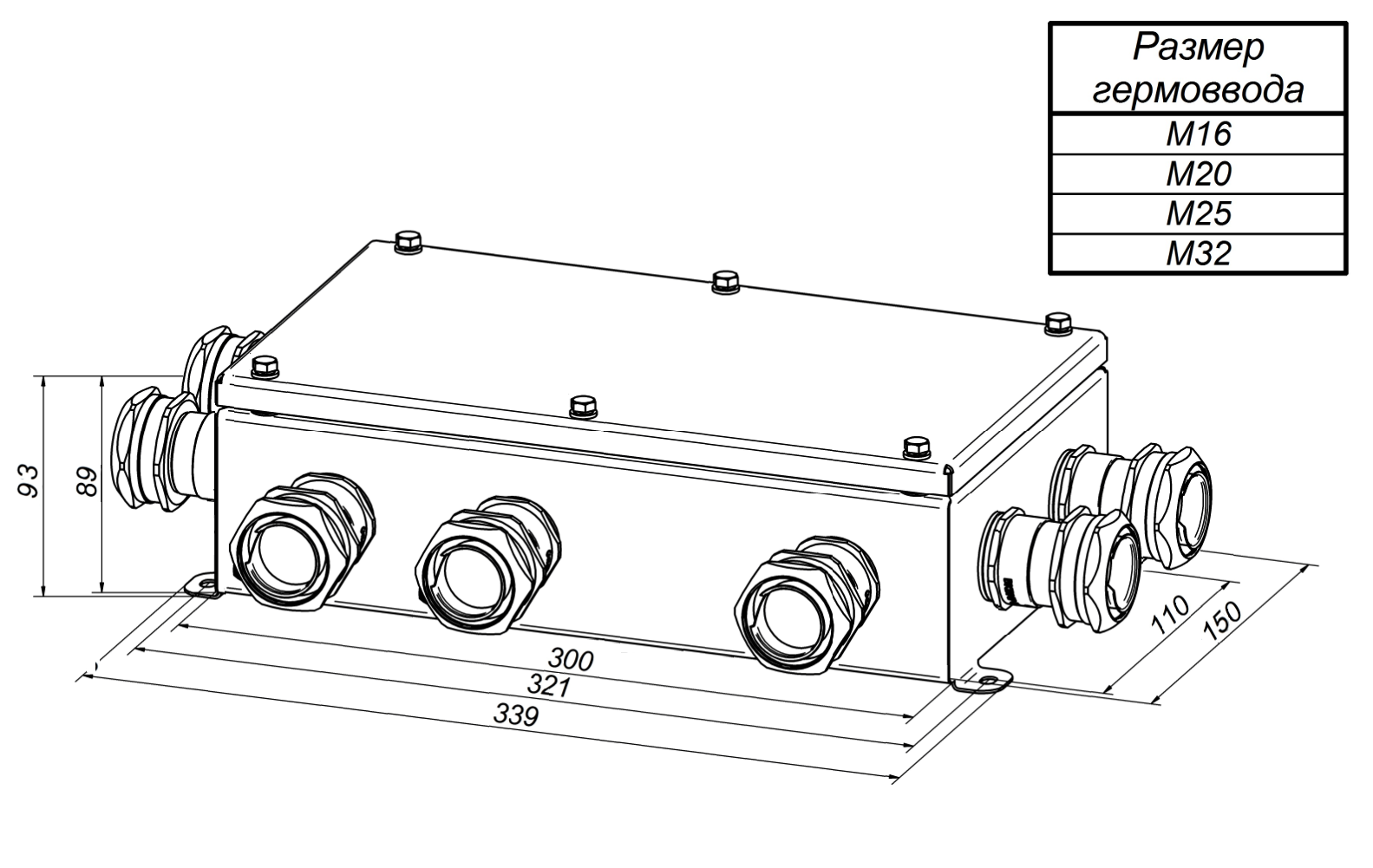

Size**, mm |
Modification | Diameter of the cable, mm | Size cable glands | Q-ty of inputs, up to мах | Cable glands placing diagram |
|
150х300х89 |
1530 |
12-20 |
М25 |
10 |
|
|
18-26 |
М32 |
| Designation | КМ-VO (10к)-IP66 1530 |
| Dimensions, mm | 150х300х89 |
| Number of inputs, up to | 12 |
