Description

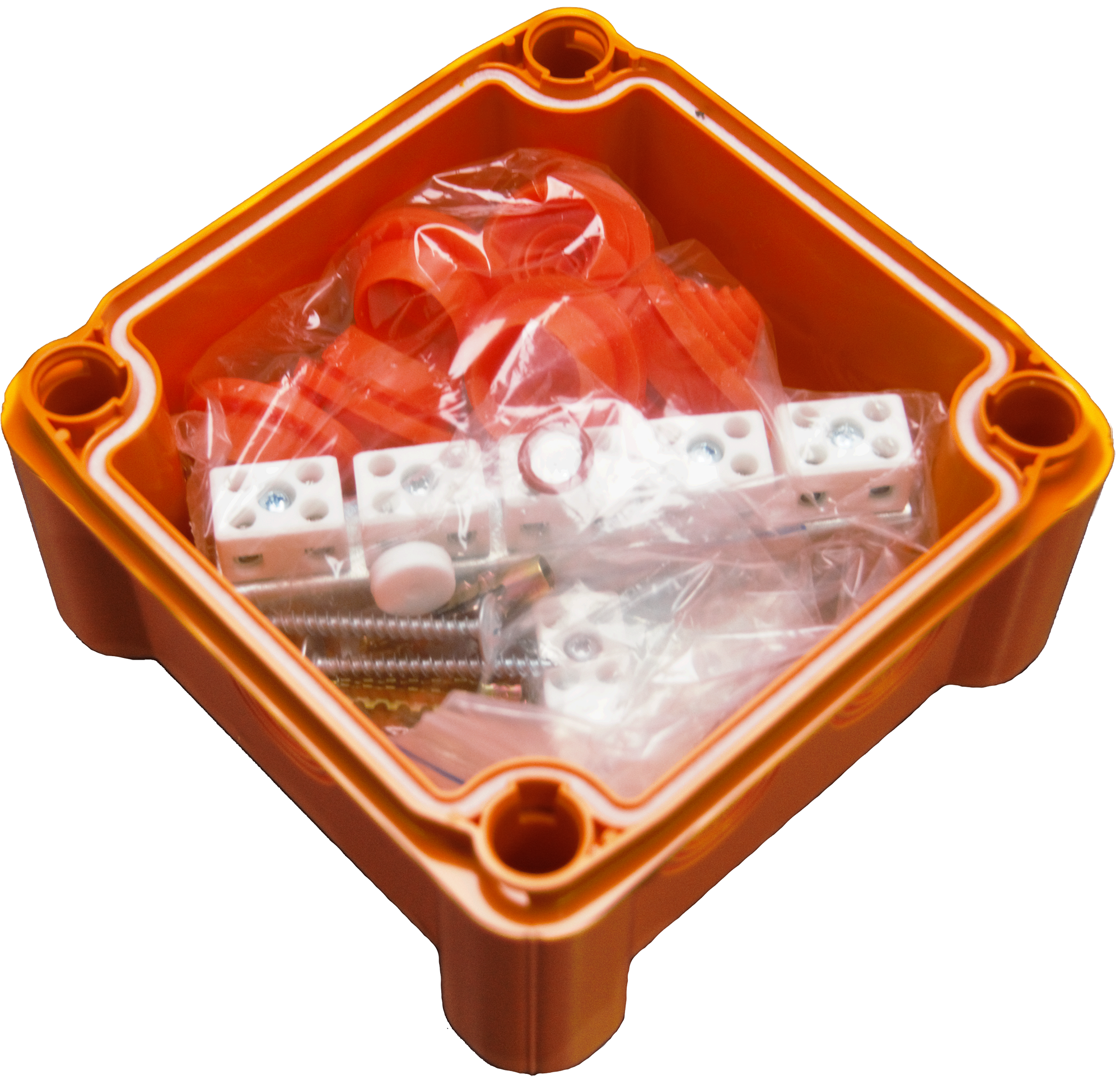

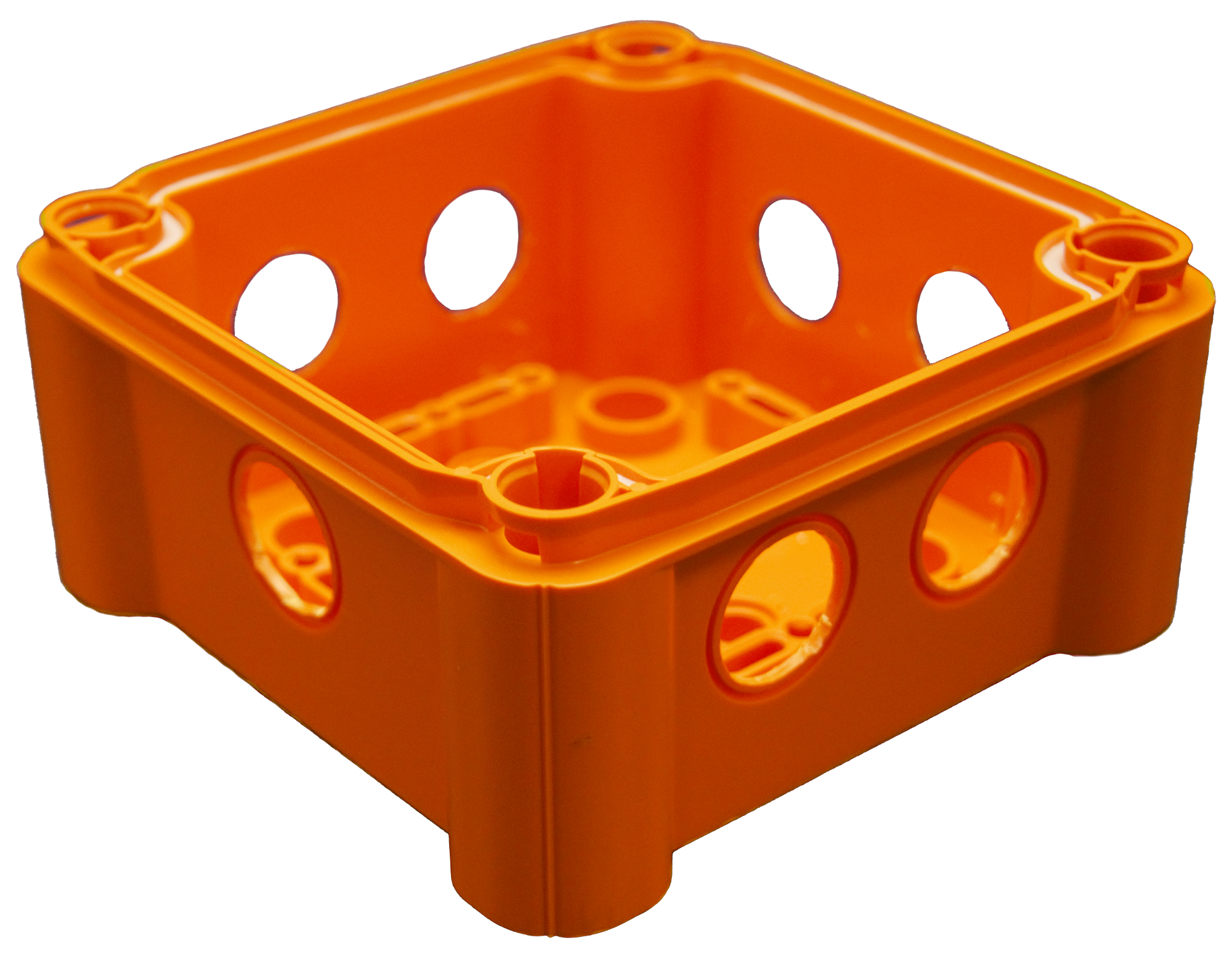

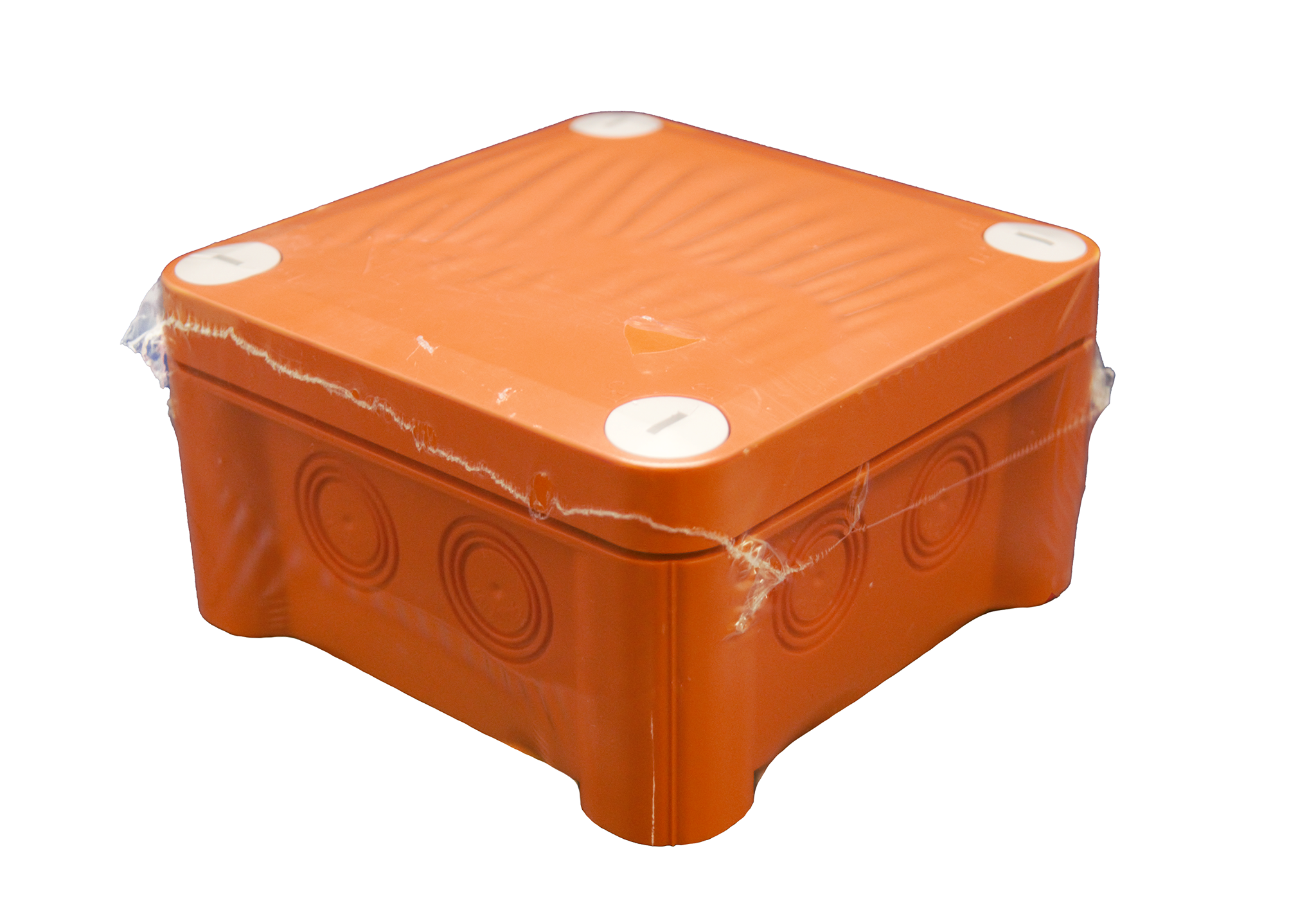

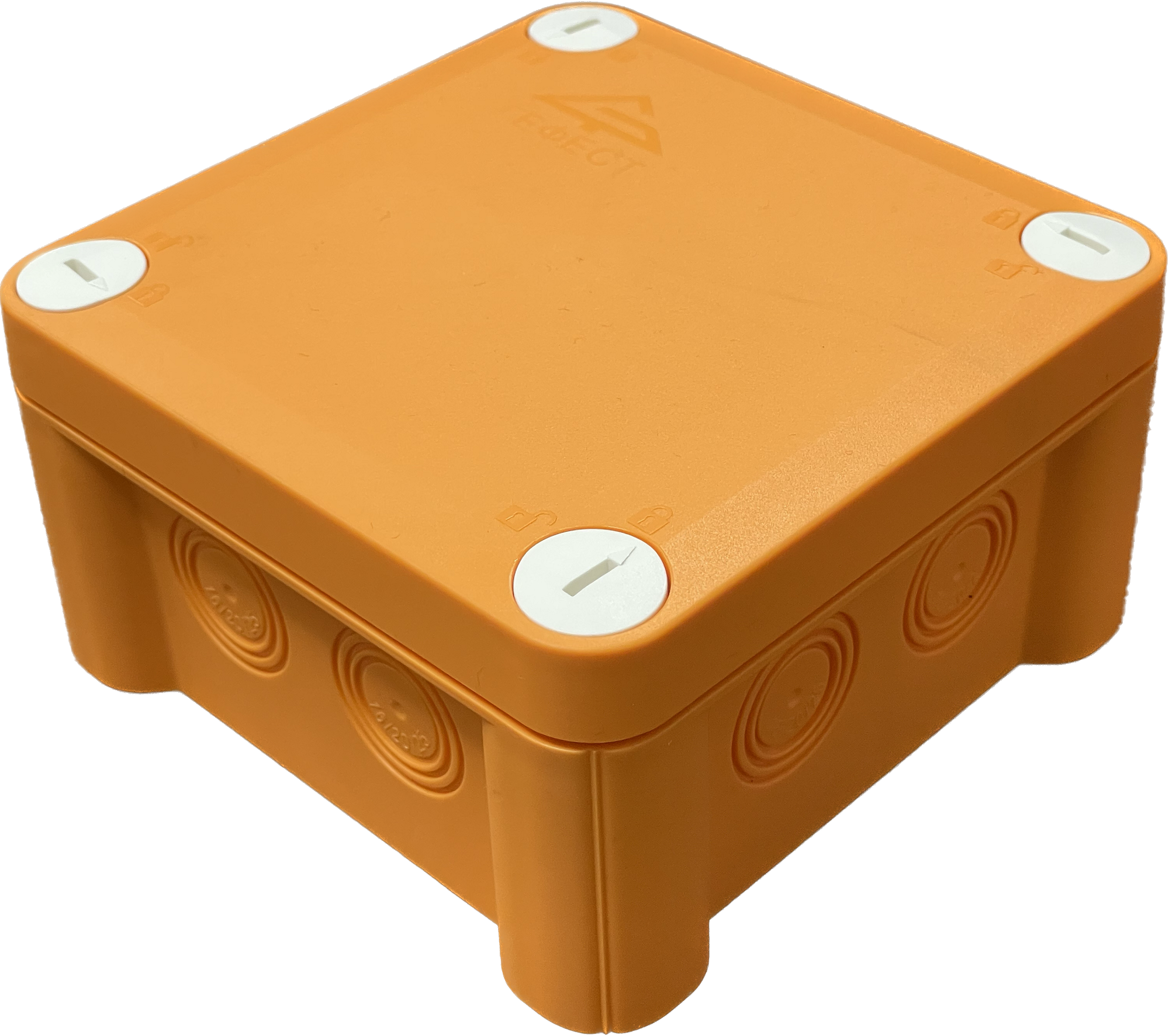

Fireproof junction boxes КМ-О(П) are made of ABS plastic.
The boxes are certified for compliance with the requirements of technical regulations: TR TS 004/2011 "On Safety of Low Voltage Equipment".
Shell protection degree: IP55Fire resistance as part of a cable line: 60 minutes.
Climatic modification as per GOST 15150: U 1
Operating temperature range from -40 ° C to +80 ° C .
Connected cable diameter: 4-18 mm.
Nominal connecting capacity of terminals: 3.0, 6.0, 10.0 mm2
Number of inputs: 4
Rated voltage: 450 V
Size: 122x122x66 mm
Characteristics
| Dimensions | 122x122x66 mm |
| Sheath protection degree | IP55 |
| Temperature regime | from -40ºС tо +80ºС |
