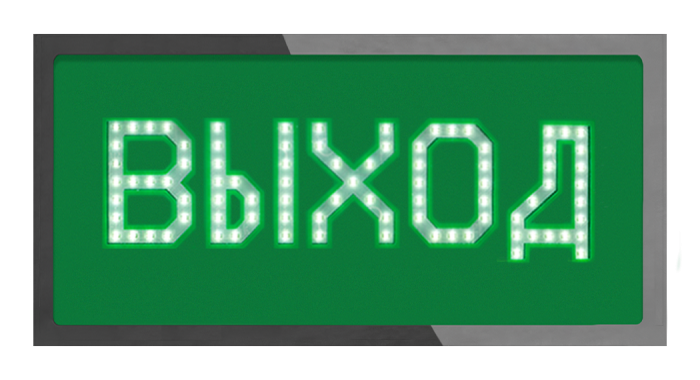

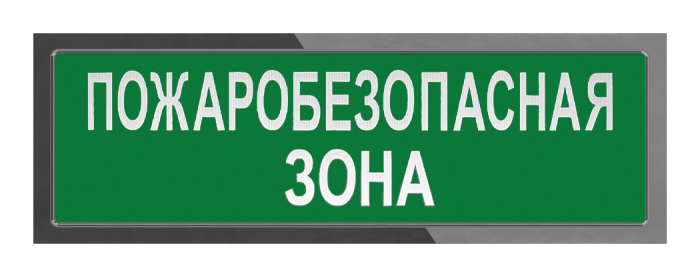

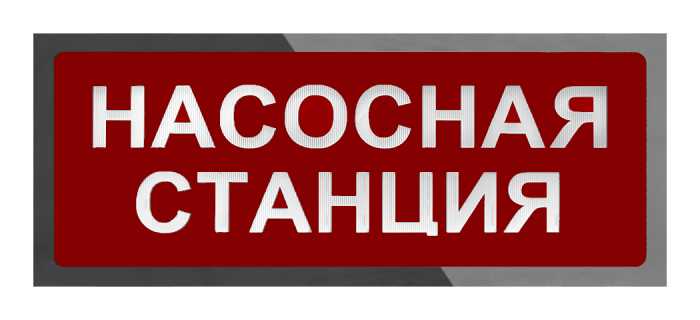

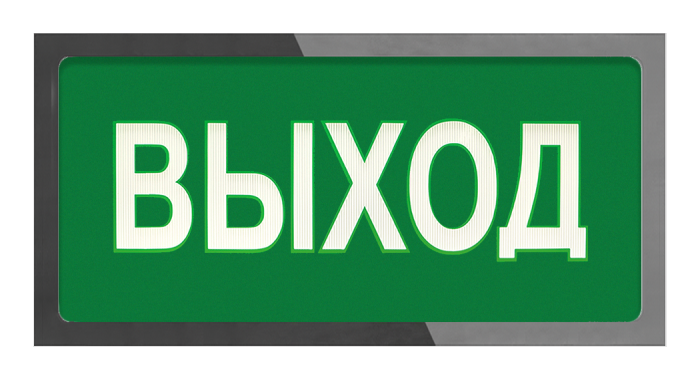

Certificate of Conformity to TR EEU for Irida-Gefest visual alarm.pdf Screen-printed light fire panels: “Irida-Gefest” are used for operation in a constant operation mode such as “EXIT”, “PUMP STATION”, “FIRE STANDPIPE” etc.
The body of the panel is made from stainless steel.
Form and sizes of the panels are corresponded to GOST 12.4.026-2015.
Flashing models of screen printed light fire panels have a flashing frequency in the range from 0,5 to 2Hz.
Certificate of Conformity to TR EEU for Irida-Gefest visual alarm
Peculiarities:
- Provide a contrast visibility of a sign in direct illumination conditions up to 500 lux
- For outside installation a cap should be used
- Any pictograms in any language can be placed
- Practiced in a screen printed manner which is optimal for manufacturing of light fire panels
- Clearly inform about operation mode of a panel
- Protective cover – IP66
Technical characteristics:
Electrical characteristics
Electrical supply – from an AC power supply with U =24V
Operability under voltage change – from 10,5V to 48V (U max)
Useful current:
-with the length less than 8 symbols - not more than 25 mA
-more than 8 characters long - up to 35 mA
Protective cover – IP66
Sizes, mm:
1х8 - 300х80х30
2х5 - 300х150х30
2х8 - 350х150х30
2х10 - 425х150х30
Connection diagram
