General and technical data
The body of the panel is made from stainless steel. Can be represented in P, SP series and Screen printed.
Signal colors, form and sizes of the panels are corresponded to GOST 12.4.026-2015.
Certificate of Conformity to TR EEU for Irida-Gefest visual alarm
Peculiarities:
- Provide a contrast visibility of a sign in direct illumination conditions:
- LED screen
- Any pictograms in any language can be placed
- Temperature range from -60 to +55 °С
- Clearly inform about operation mode of a panel
- Protective cover – IP66, IP44
|
P series |
up to 10000 lux |
| SP series |
up to 50000 lux |
Technical characteristics:
Useful current:
|
P series |
from 18V to 30V (U max) |
| SP series |
from 18V to 30V (U max) |
Operability under voltage change:
|
P series |
not more than 100 mA |
| SP series |
not more than 250 mA |
Sizes, mm:
1х8 - 300х80х30
2х5 - 300х150х30
2х8 - 350х150х30
2х10 - 425х150х30
Connection diagram
See prices list

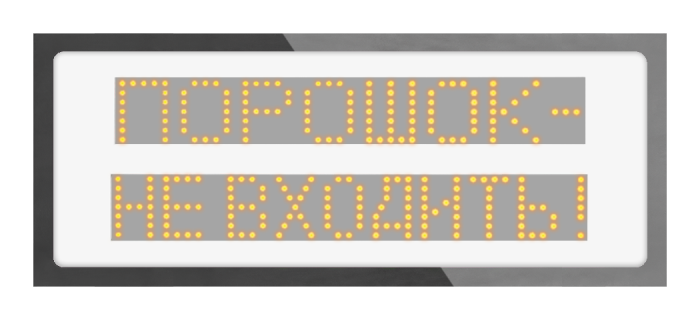

-вкл.png "Visual alarm SP-series SEVER-version IP66 2х8")
