General and technical data
The body of the panel is made from stainless steel. Can be represented in P series and Screen printed.
Signal colors, form and sizes of the panels are corresponded to GOST 12.4.026-2015.
Certificate of Conformity to TR EEU for Irida-Gefest visual alarm
Peculiarities:
- Provide a contrast visibility of a sign in direct illumination conditions:
- LED screen
- Any pictograms in any language can be placed
- Temperature range from -60 to +55 °С
- Clearly inform about operation mode of a panel
- Protective cover – IP66
|
P series |
up to 10000 lux |
| SP series |
up to 50000 lux |
Technical characteristics:
Useful current:
|
P series |
from 18V to 30V (U max) |
| SP series |
from 18V to 30V (U max) |
Operability under voltage change:
|
P series |
not more than 100 mA |
| SP series |
not more than 250 mA |
Sizes, mm:

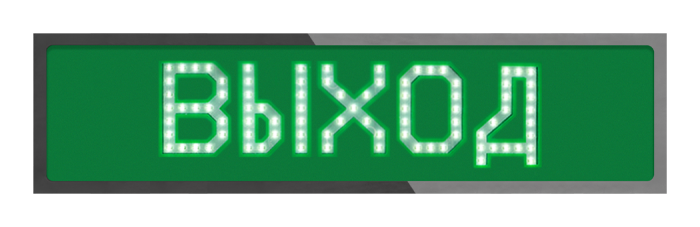

1х8 - 300х80х30
2х5 - 300х150х30
2х8 - 350х150х30
2х10 - 425х150х30
Connection diagram
See prices list

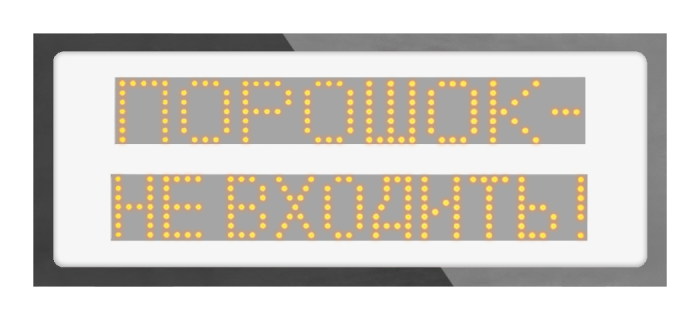

-вкл.png "Visual alarm P-series SEVER-version IP66 2х8")
See prices list
-вкл.png "Visual alarm P-series SEVER-version IP66 2х10")
See prices list
