Visual alarm IP66

General and technical data

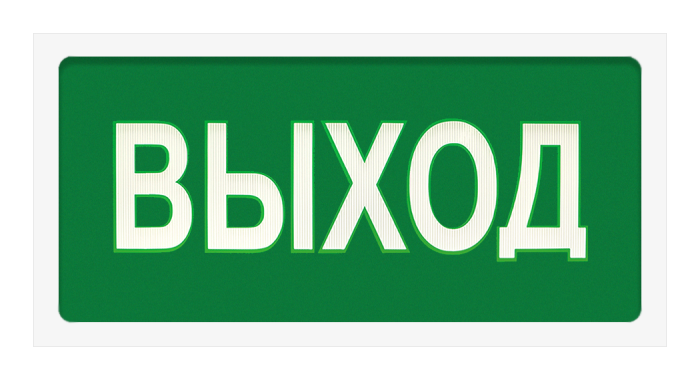

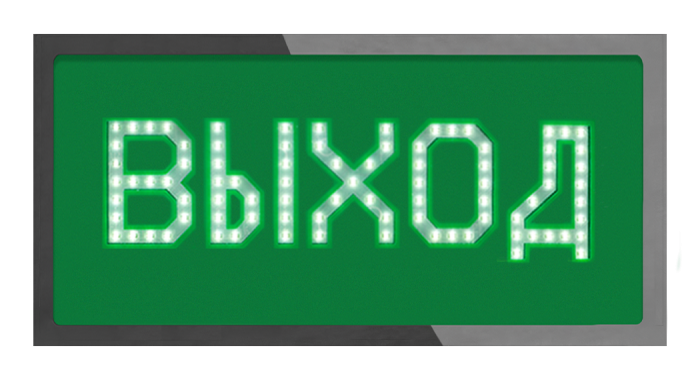

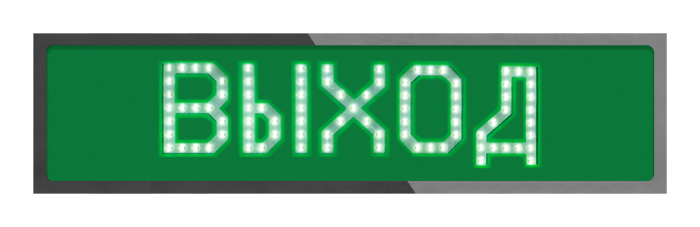

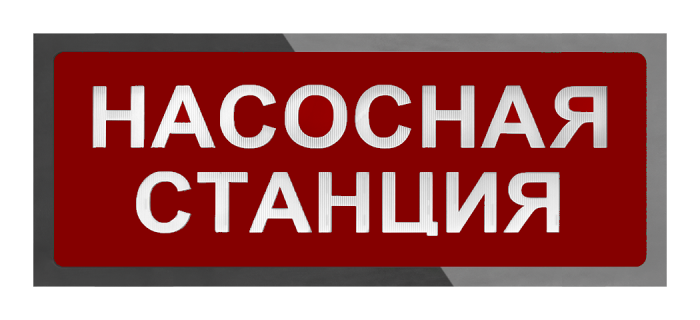

Screen-printed light fire panels: “Irida-Gefest” are used for operation in a constant operation mode such as “EXIT”, “PUMP STATION”, “FIRE STANDPIPE” etc.

The body of the panel is made from galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will).

Form and sizes of the panels are corresponded to GOST 12.4.026-2015.

Flashing models of screen printed light fire panels have a flashing frequency in the range from 0,5 to 2Hz.

Certificate of Conformity to TR EEU for Irida-Gefest visual alarm

Peculiarities

Provide contrast visibility of signs in flashing conditions up to 10000 lux (sunny day)
Non-visible in a switch-off mode
IP66 protective cover
LED screen
Temperature range from –40°C to +55°C
For outside installation a cap should be used
Any pictograms in any language can be placed
Clearly inform about operation mode of a panel
There are fireproof and low-temperature-resistance models

Provide a contrast visibility of a sign in direct illumination conditions:

Screen printed	up to 500 lux
P series	up to 10000 lux
SP series	up to 50000 lux

Technical characteristics

Electrical supply – from an AC power supply with U =24V

Operability under voltage change:

Screen printed – from 10,5V to 48V (U max)
P series, SP series – from 18V to 30V (U max)

Useful current:

Screen printed	with the length less than 8 symbols - not more than 25 mA more than 8 characters long - up to 35 mA
P series	from 18V to 30V (U max)
SP series	from 18V to 30V (U max)
