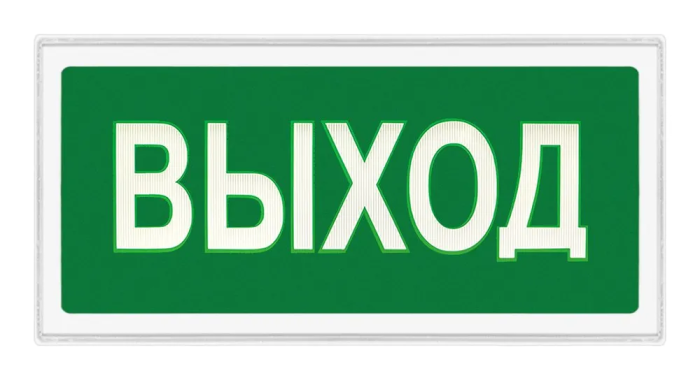

Certificate of Conformity to TR EEU for Irida-Gefest visual alarm.pdf The body of the panel is made from galvanized steel (painted with a polymeric white paint and can be painted ion any RAL color according to the customer’s will).
For indoor installation only.
Flashing models of screen printed light fire panels have a flashing frequency in the range from 0,5 to 2Hz.
Certificate of Conformity to TR EEU for Irida-Gefest visual alarm
Peculiarities:
- Provide a contrast visibility of a sign in direct illumination conditions up to 500 lux
- For outside installation a cap should be used
- Any pictograms in any language can be placed
- Practiced in a screen printed manner which is optimal for manufacturing of light fire panels
- Clearly inform about operation mode of a panel
- Protective cover – IP44
Technical characteristics:
Electrical characteristics
Electrical supply – from an AC power supply with U =24V
Operability under voltage change – from 10,5V to 48V (U max)
Useful current:
-with the length less than 8 symbols - not more than 25 mA
-more than 8 characters long - up to 35 mA
Sizes, mm:
1х8 - 300х80х30
2х5 - 300х150х30
2х8 - 350х150х30
2х10 - 425х150х30
Connection diagram
