Technical features

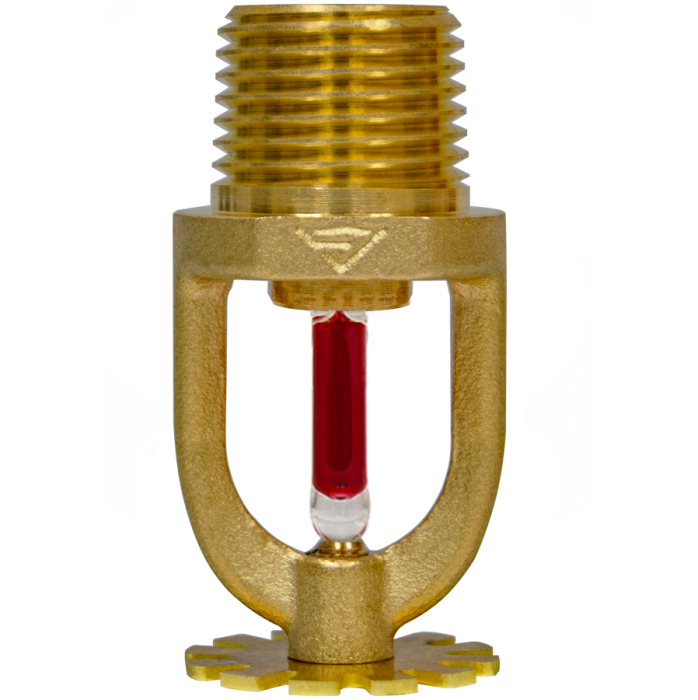

Pendant sprinkler
K-factor - 0.71 (135)
Protected area - not less than 12 sq.m.
Actuation temperature - 57° С, 68° С , 93° С.
Bulb of standard response - 5 mm, of fast response - 3mm
Thread - 1/2 inches
Finish - without cover (bronze), with cover (nickel, white)
Weight - 0,08 kg
Overall dimensions - 60х30 mm.
Diagram of irrigation intensity dependence on pressure at application of water and water solutions with capacity factor K=0.71 on 12 m2 protected area
Installation height 2,5m for upright sprinkler
Diagram of irrigation intensity dependence on pressure at application of foam and foam solutions with capacity factor K=0,71 on 12 m2
Installation height 2,5m for upright sprinkler
Sprinkler maps - water (water solutions)
Sprinkler maps - foam (foam solutions)
| Atomizer weight | 0,076 kg |
| Connecting thread | 1/2 дюйма |
| Dimensions | 60х30 mm |
| Drencher or Sprinkler | Sprinkler |
| Installation orientation | Pendent |
| K-factor | 9,5 (135) |
| Model | CУО0-РНо(д) 0,6-R1/2 /Р57 (68, 79, 93).В3 Aqua-Gefest |
| Performance factor | 0,71 |
| Sprinkler flask diameter | 3 мм, 5 мм |
| Sprinkler response temperature | 57°С, 68°С , 79°С, 93°С |
