Description

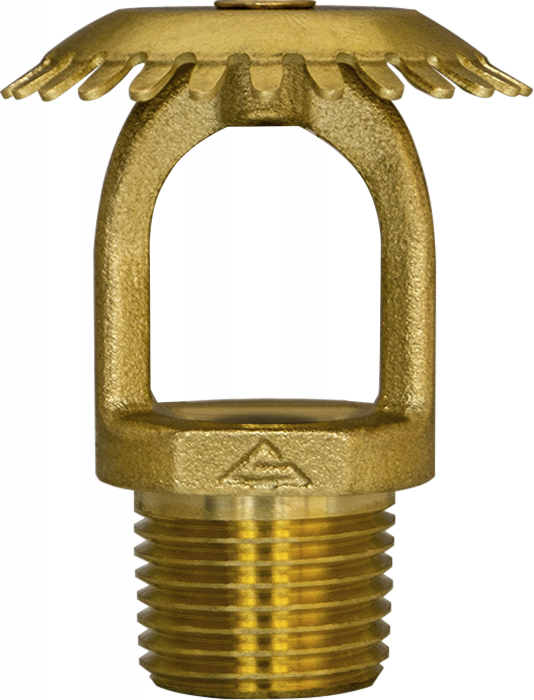

Foam/water standard sprinklers "Aqua-Gefest" are implemented in automatic extinguishing.
Technical features
Upright nozzle
K-factor - 0.36 (66)
Protected area - not less than 12 sq.m.
Connecting thread - 1/2 inches
Color - without cover (bronze), with cover (chrome, polyester)
Weight - 0,08 kg
Overall dimensions - 60х42 mm.
Technical features
Upright nozzle
K-factor - 0.36 (66)
Protected area - not less than 12 sq.m.
Connecting thread - 1/2 inches
Color - without cover (bronze), with cover (chrome, polyester)
Weight - 0,08 kg
Overall dimensions - 60х42 mm.
Diagram of irrigation intensity dependence on pressure at application of water and water solutions with capacity factor K=0.35 on 12 m2 protected area
Installation height 2,5m for upright sprinklers
Diagram of irrigation intensity dependence on pressure at application of foam and foam solutions with capacity factor K=0.35 on 12 m2 protected area
Installation height 2,5m for upright sprinklers
Sprinkler maps
Characteristics
| Atomizer weight | 0,08 kg |
| Dimensions | 60 x 30 mm |
| Drencher or Sprinkler | Drencher |
| Installation orientation | Upright |
| K-factor | 4,6 (66) |
| Operating pressure | 0,1-1,0 МПа |
| Outlet diameter | 9,4 |
| Performance factor | 0,35 |
| Protected area | 12 м2 |
| Sprinkler flask diameter | 3 or 5 mm |
