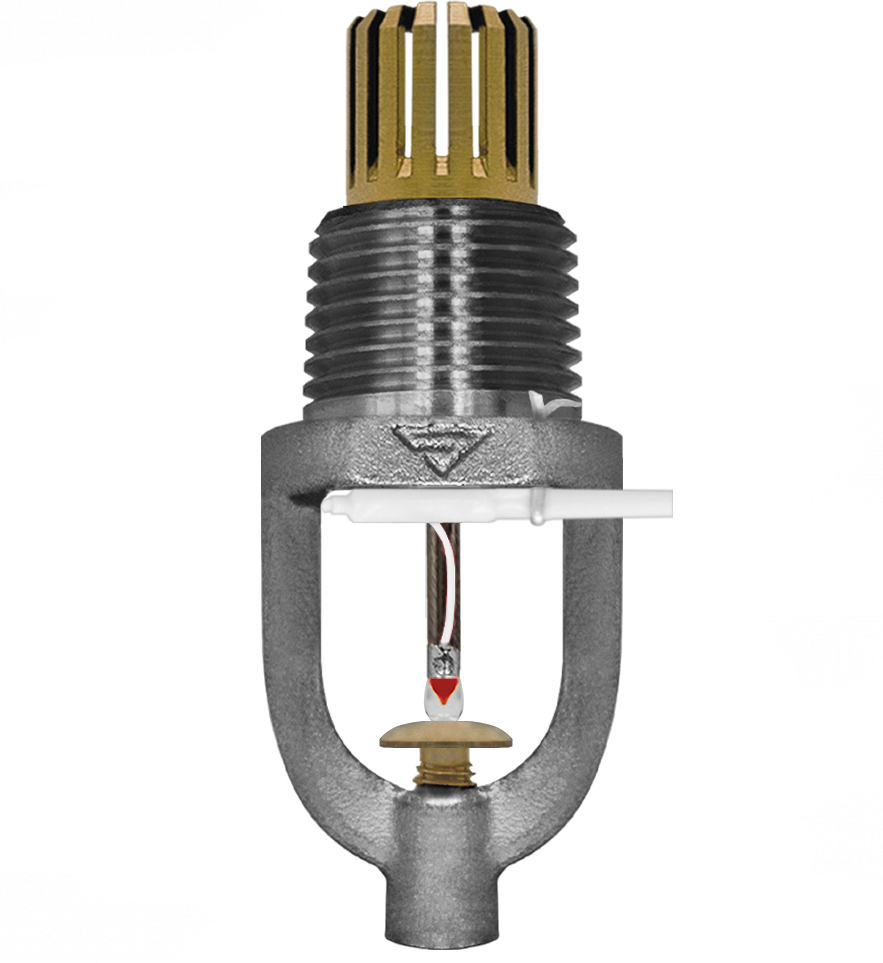

WM-sprinklers mounted head down.
For locations of the 1-st and 2-nd groups (Fire Code 88-2001) with height up to 20 m.
Output port diameter - 3,5 mm + 8 holes with diameter 2 mm
Capacity factor - 0.10
Protected area - not less than 16 sq.m.
Actuation temperature - 57° С, 68° С , 79° С , 93° С.
Connecting thread - 1/2 inches
Color - without cover (bronze), with cover (nickel, white)
Diagram of water irrigation intensity dependence on pressur with capacity factor K=0.10
on the protected area of 16 m2
Sprinkler maps
Installation height 2,5m for pendent water-mist sprinklers
Performance factor | 0,10 |
Max. distance between nozzles | 3 m |
Dimensions | 68х28 mm |
Outlet diameter | 3,5 mm |
Diameter add. holes | 2 |
Sprinkler flask diameter | 3 mm |
Protected area | 16 м2 |
K-factor | 1,3 (19) |
Number of add. holes | 8 |
Max. installation height of nozzles | 20 m |
Atomizer weight | 0,096 кg |
Installation orientation | Pendent |
Connecting thread | 1/2 inch |
Sprinkler response temperature | 57° С, 68° С , 79° С , 93° С |
